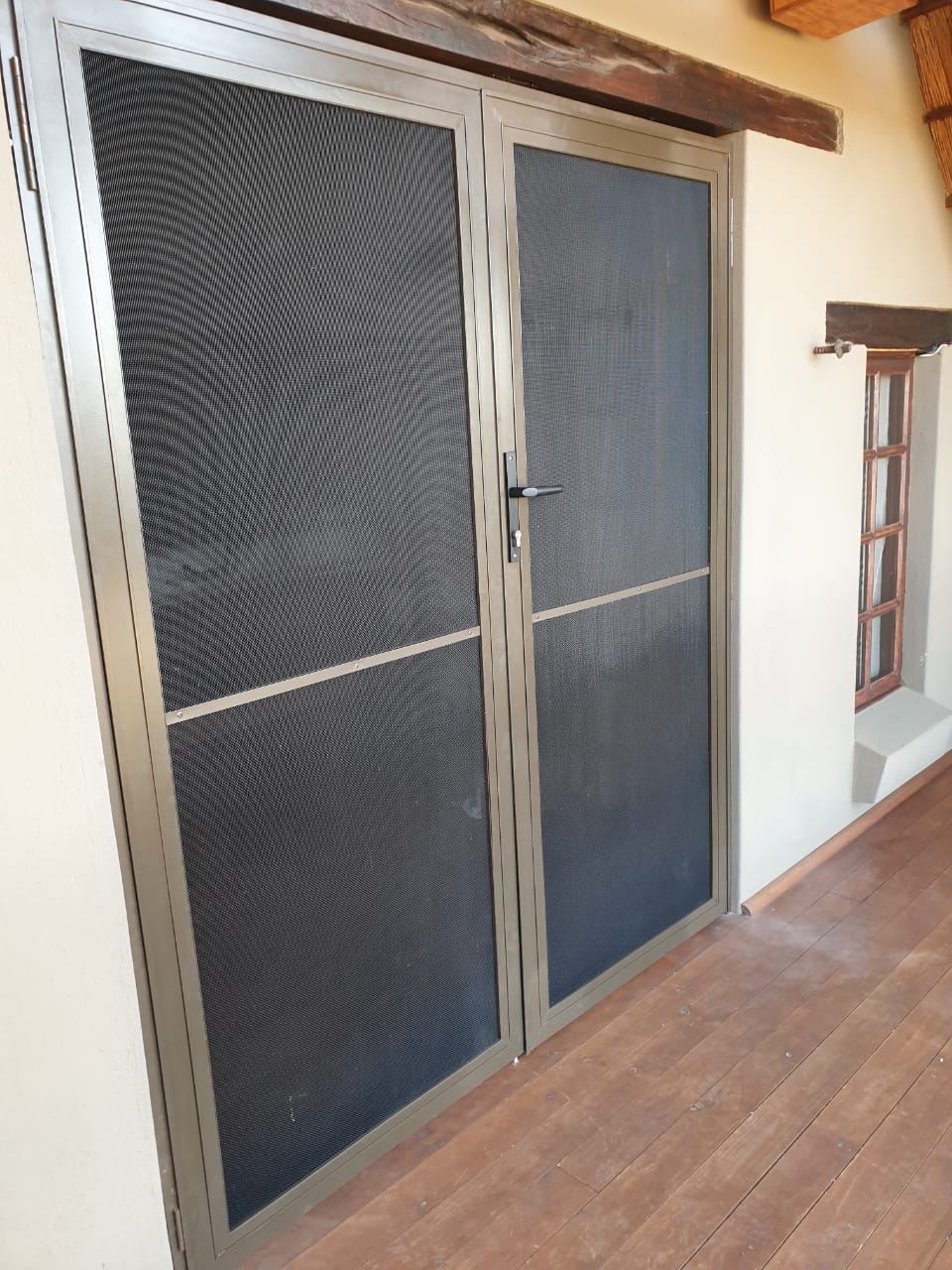

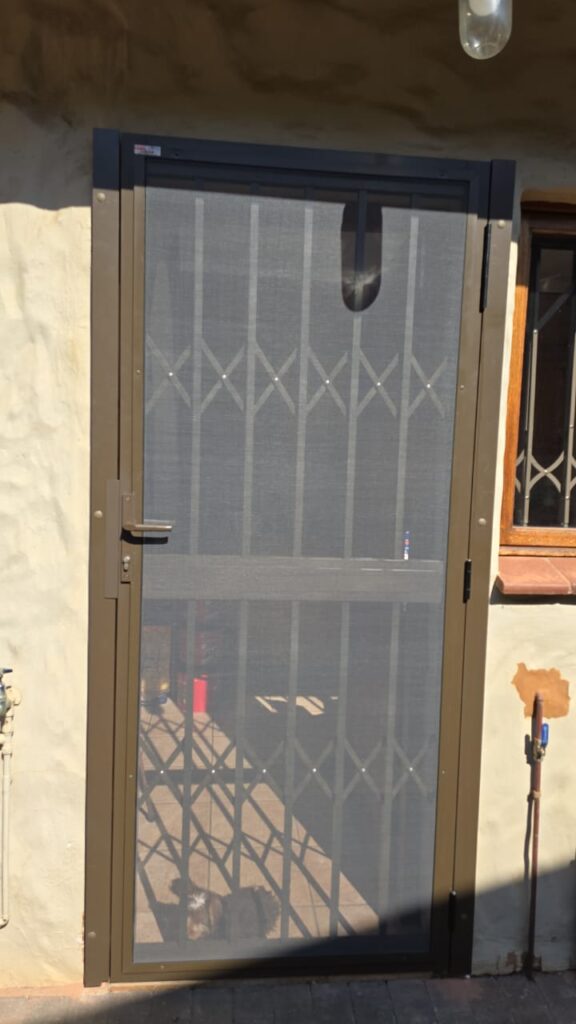

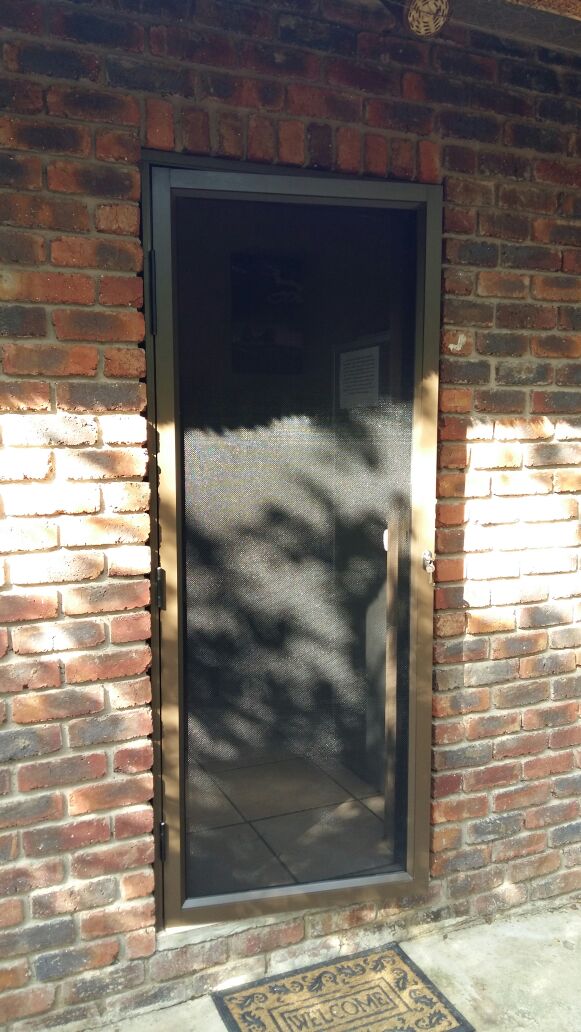

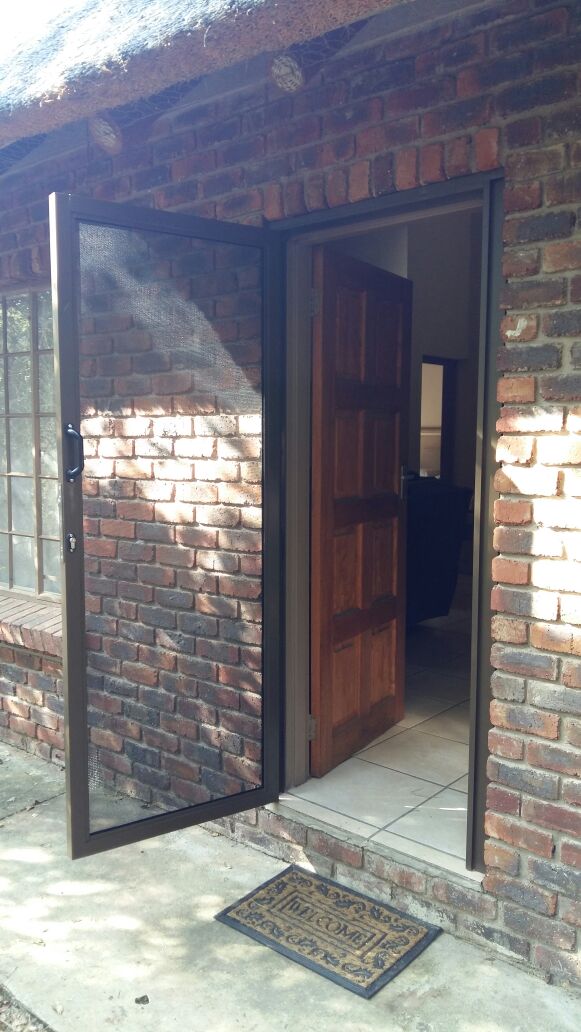

We added the Swing Gate Option in Aluminium into our product range in order to eliminate the problem that people encounter when moving furniture in and out the house. Our Swing Gate option is very favourable solution to keep your whole walk way open with proper security in place. We have a horizontal look, burglar X and the double burglar X look and it compliments our Retractable product range.

Technical Data Sheet and Product Information

  • Structure: Structured T8 Aluminium Extrusion with Stainless Steel mesh insert.
  • Operation: Options available: Sliding inside reveal, single slider, double slider, only horizontal sliding
    options. Hinge openers left and right, stacking sliding options available, spec or patent to
    follow Aluminium tack door designs. Fixed panels options also available.
  • Components: Aluminium T8 6063 Frame(H11800), Aluminium T8 6063 Clips(49209), Latch Lock “5” 25 B5 with
    Euro Cylinder, Aluminium Drop Bolts (100mm), Bearings (20×8) Stainless Steel Mesh (10 mesh x
    0.9 wire x 1300 wide – SS 304)
  • Strengths: Steel Mesh and T6 Hardened Aluminium Frame, that keeps insects and criminals out but keeps
    the view.
  • Corrosion Properties: Anodized and powder-coated
  • Powder Coating
    Details: Epoxy Powder Coated.
  • Guaranteed for 5 years!

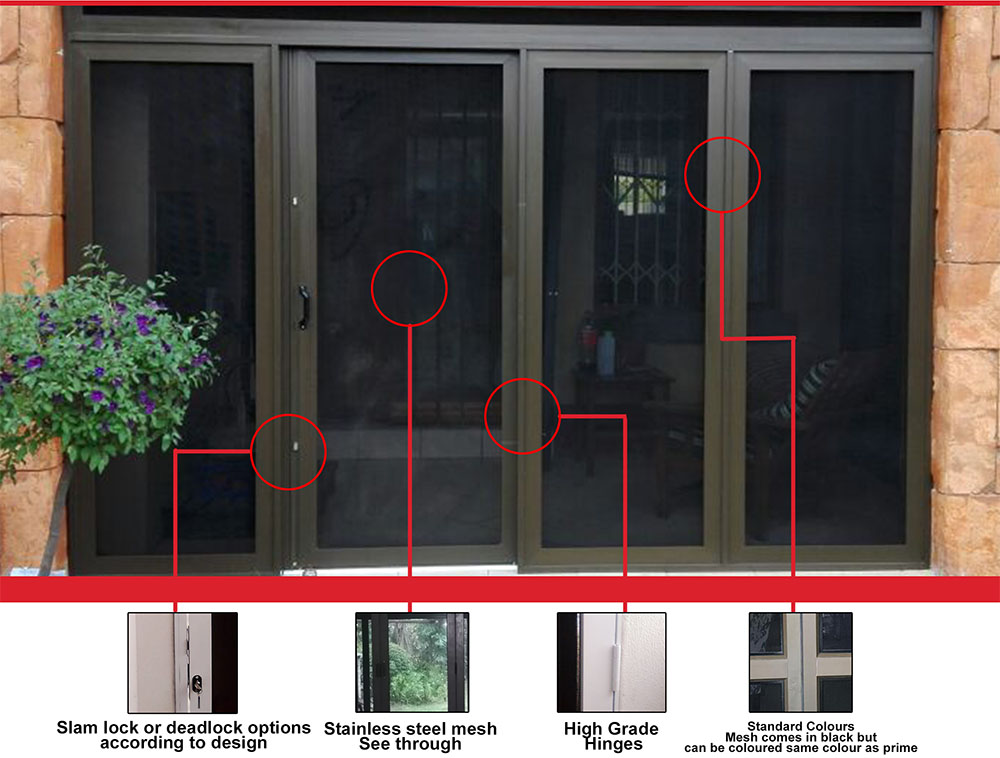

Gate Features

Transparent

Rust Free

5 Year Guarantee

High Strength Design

Keep out all intruders and insects

Quality Paint Finish

We can also add Clear Shield to your Swing Gates

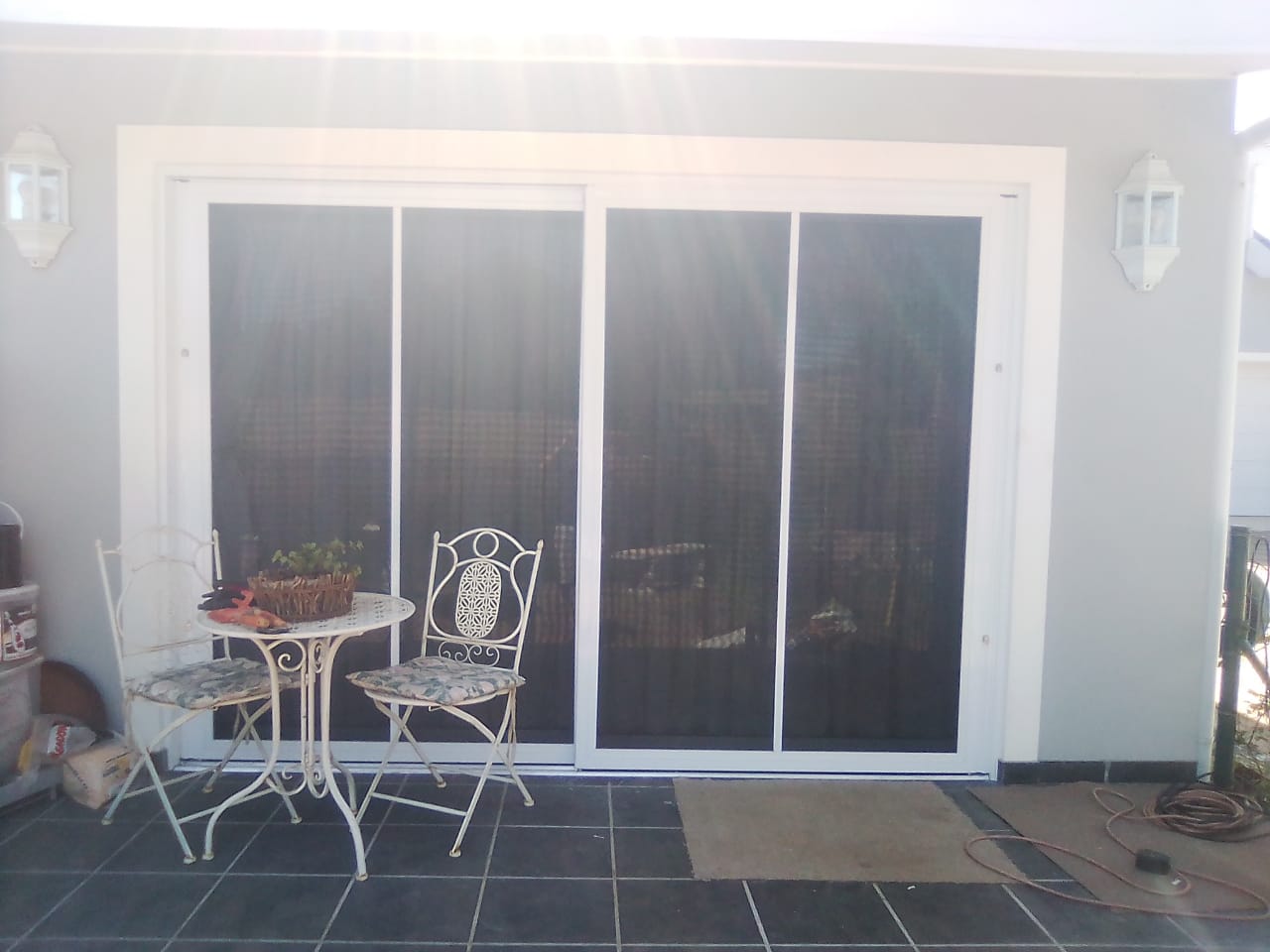

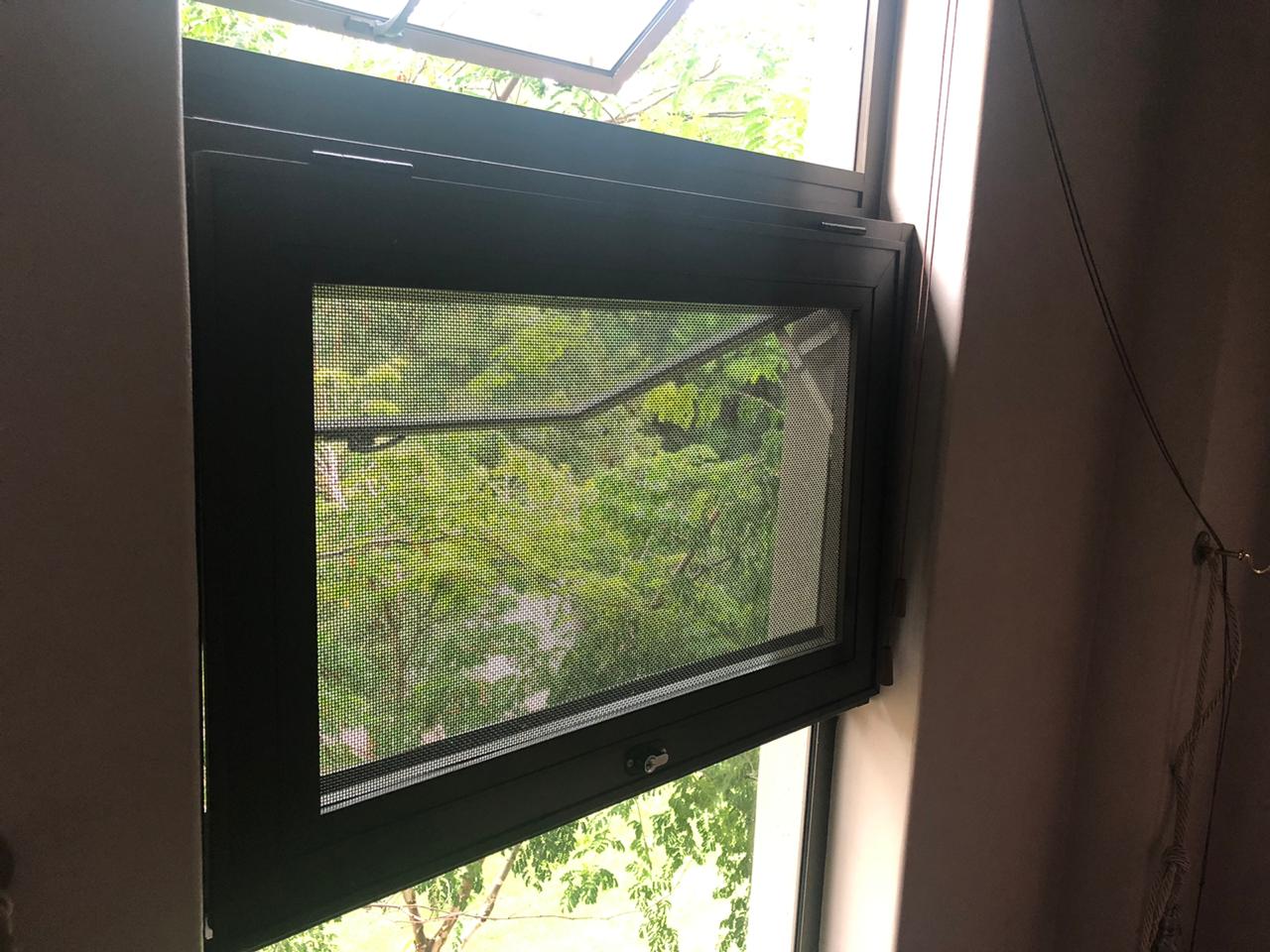

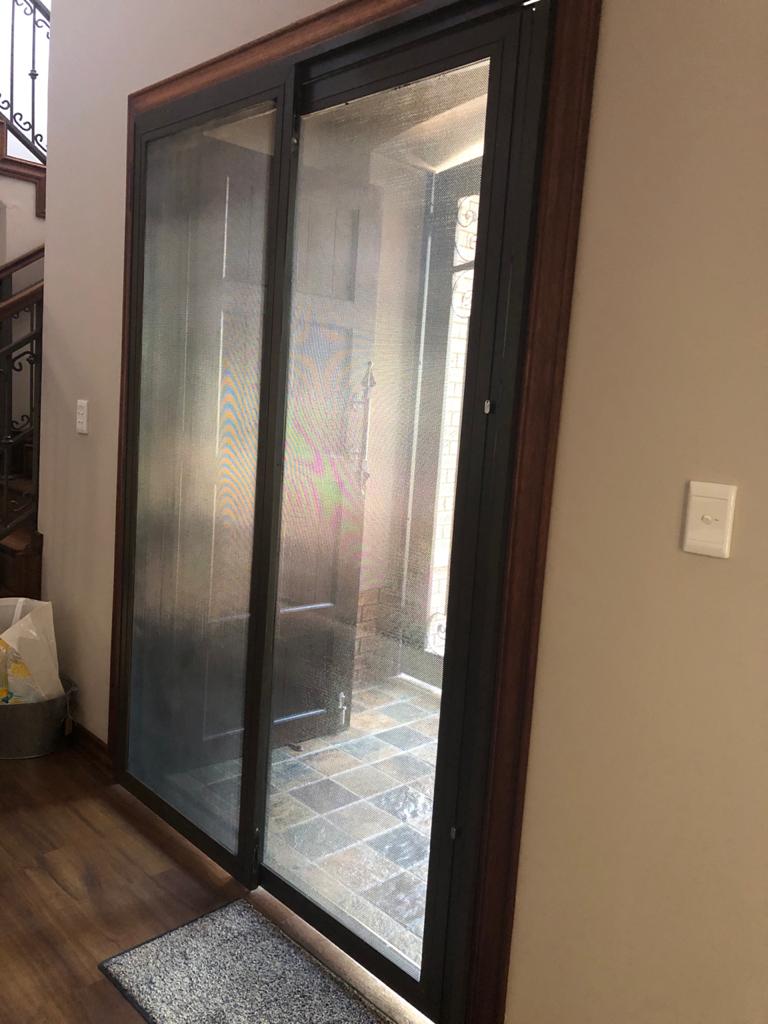

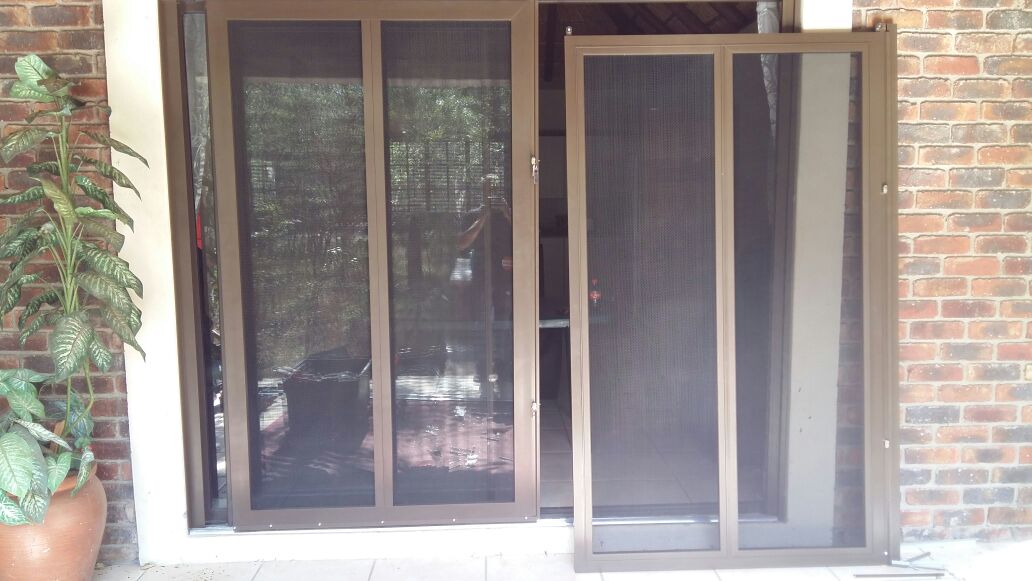

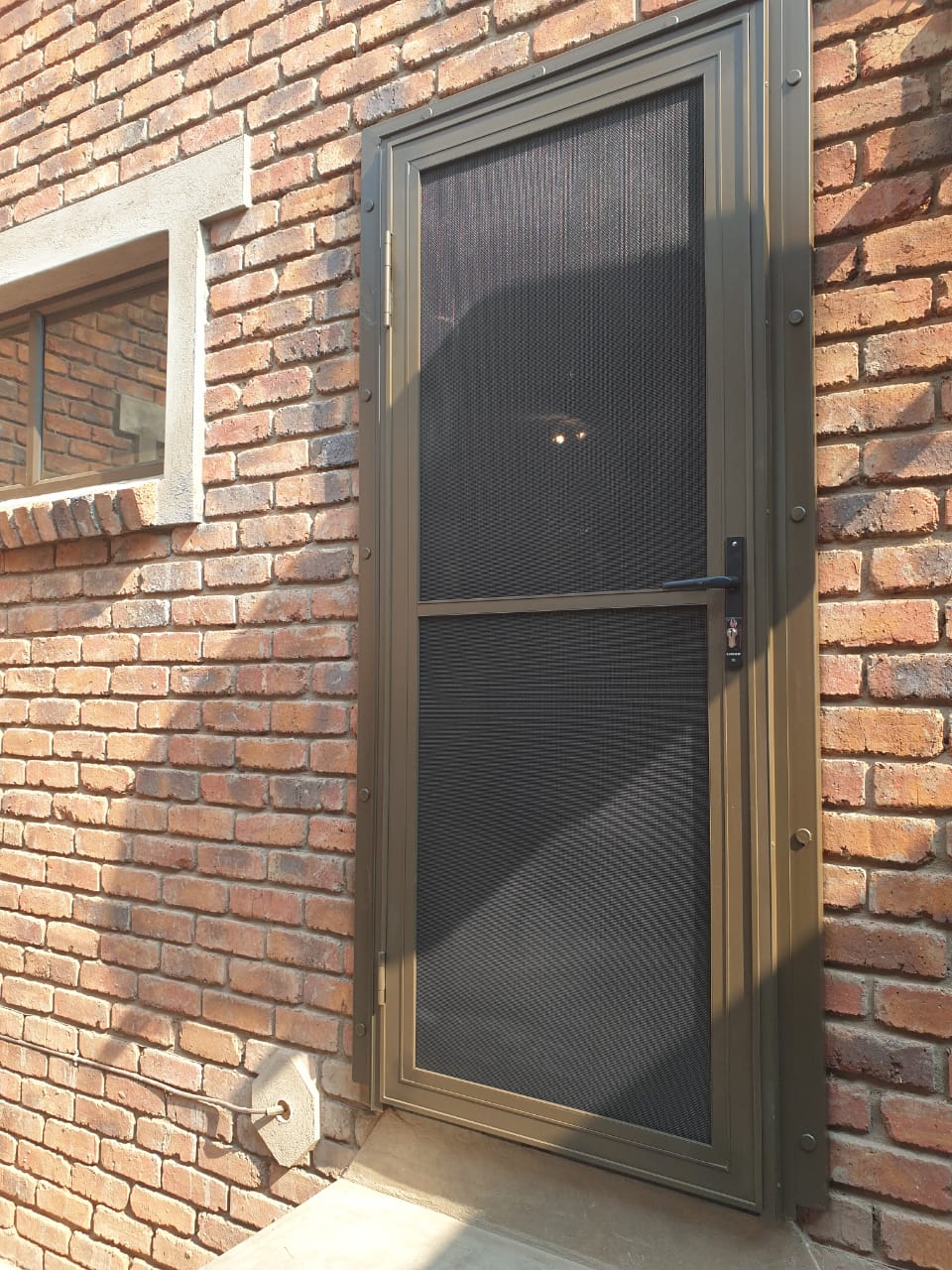

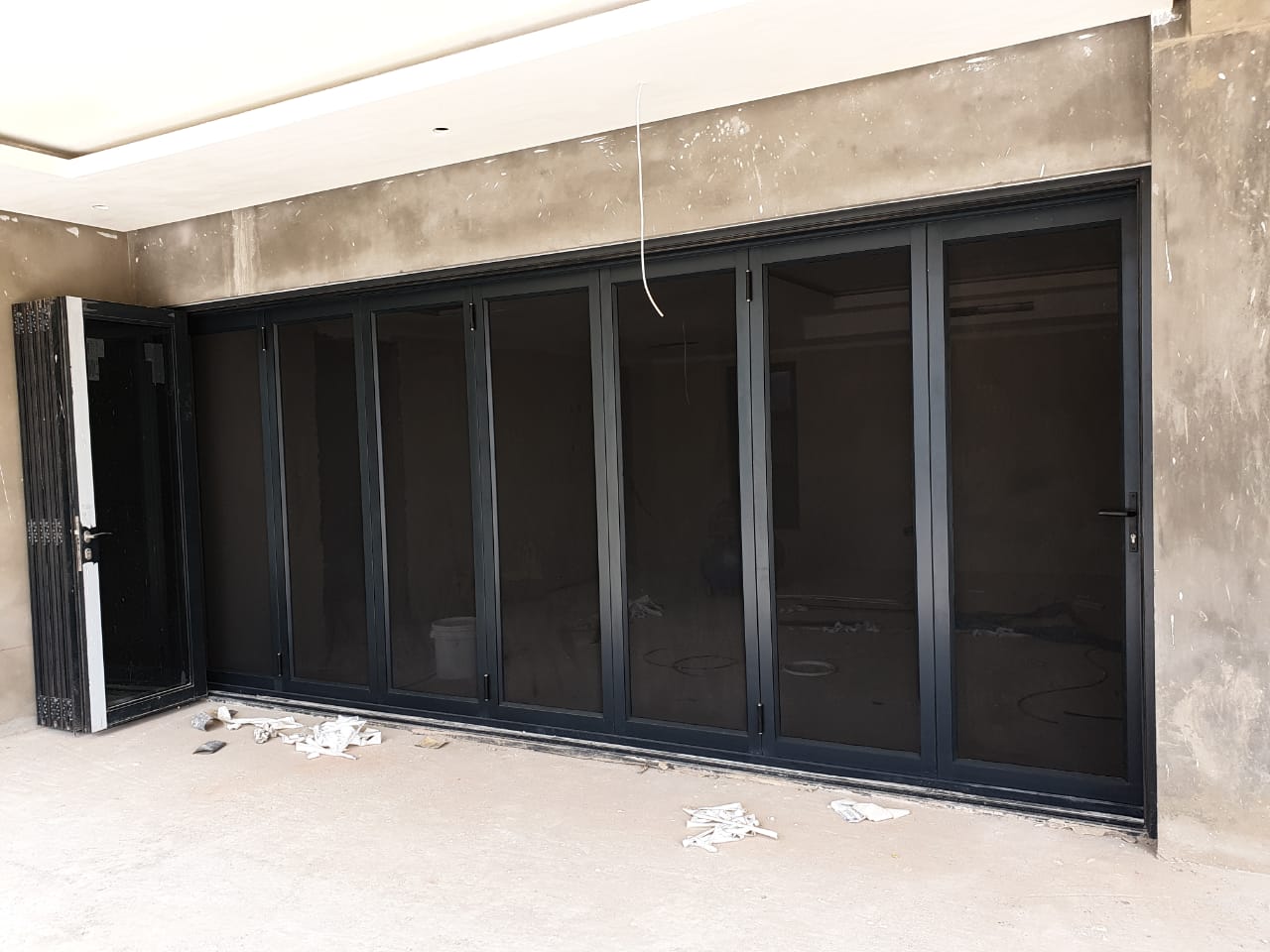

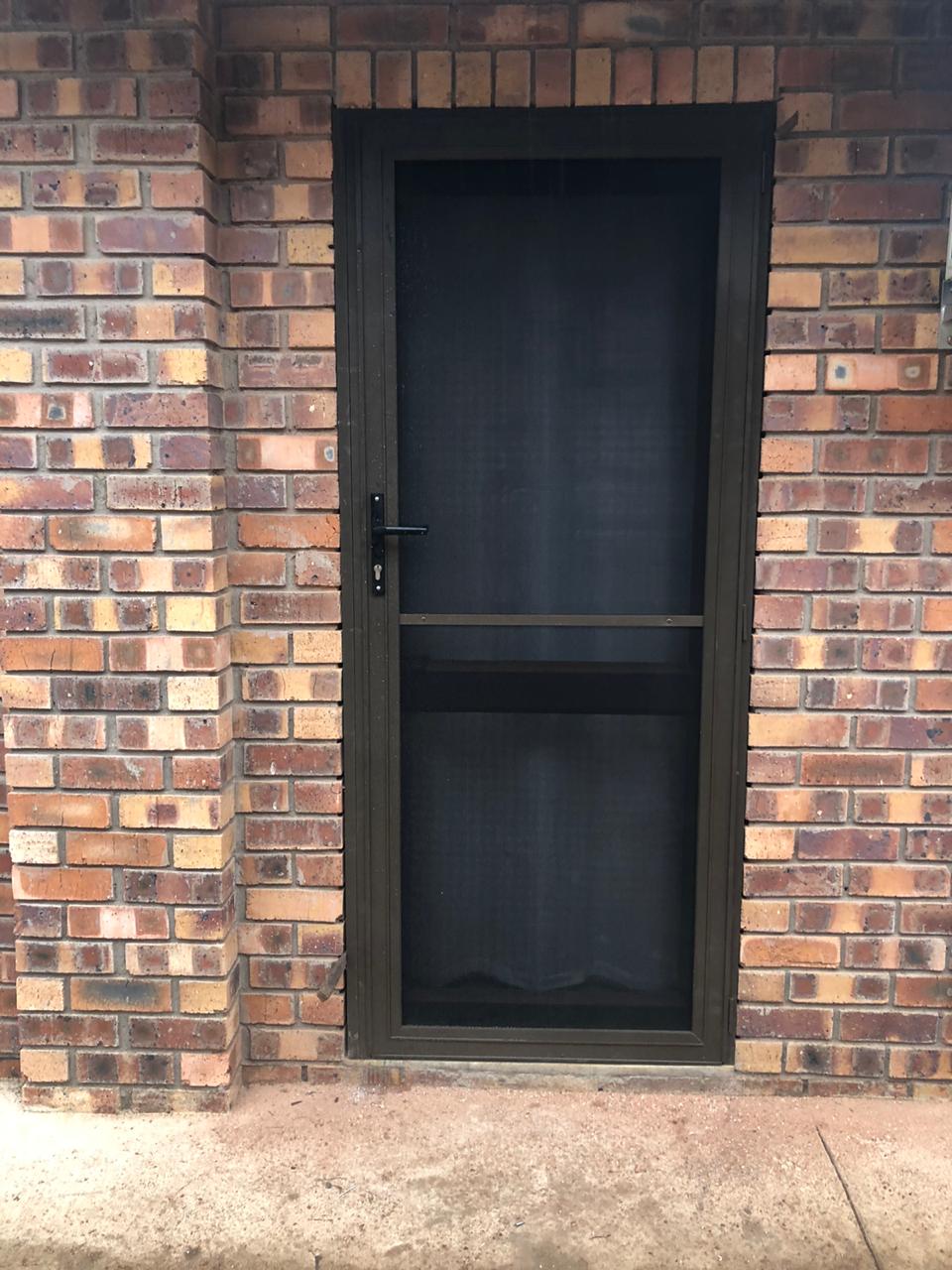

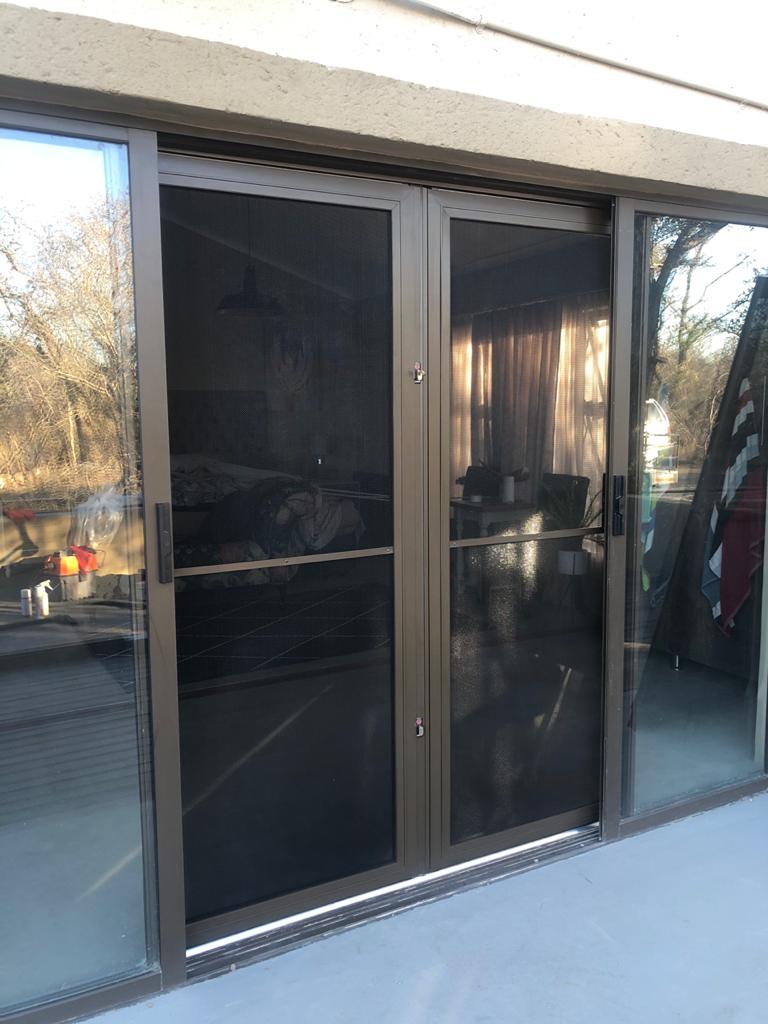

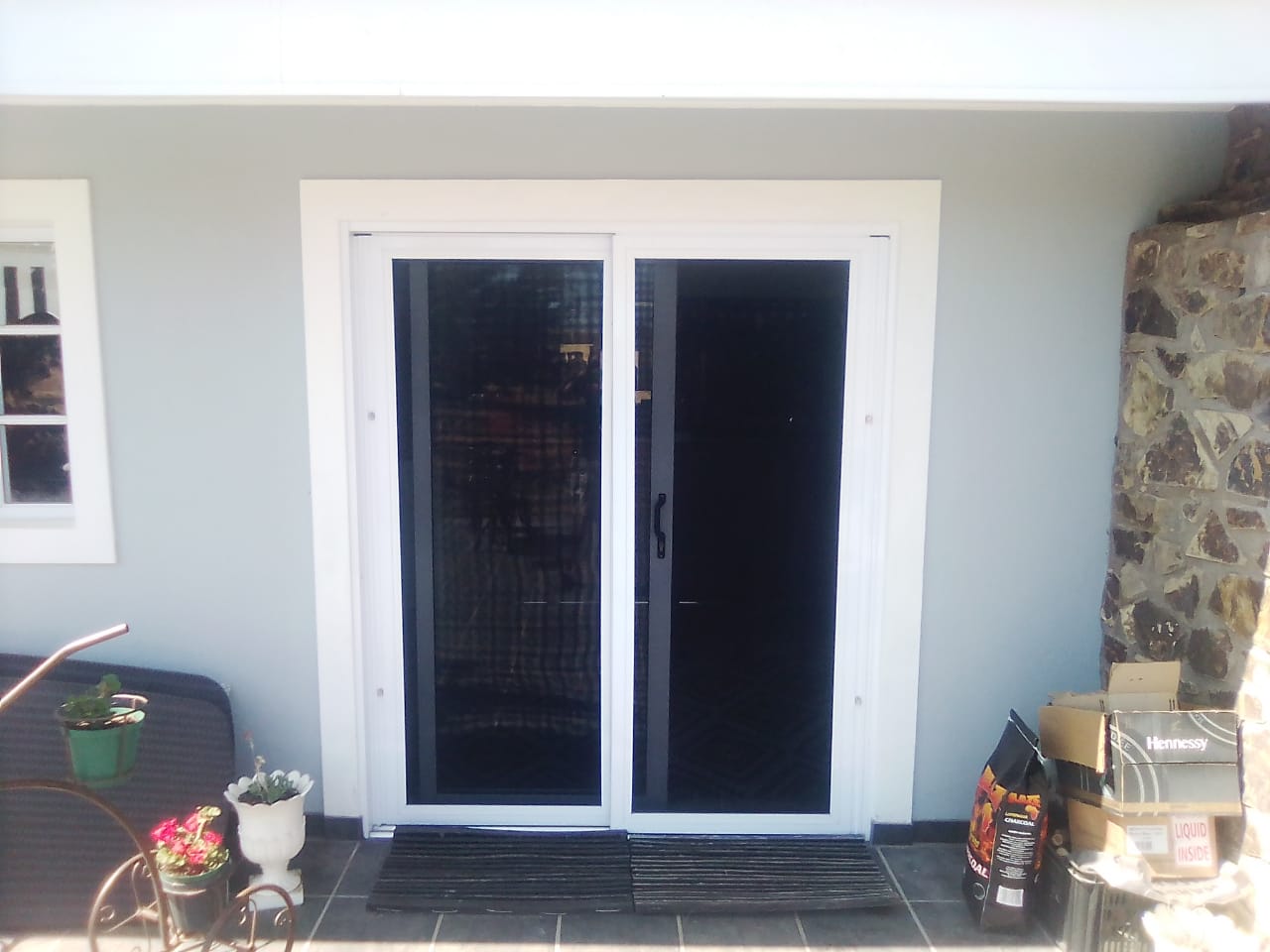

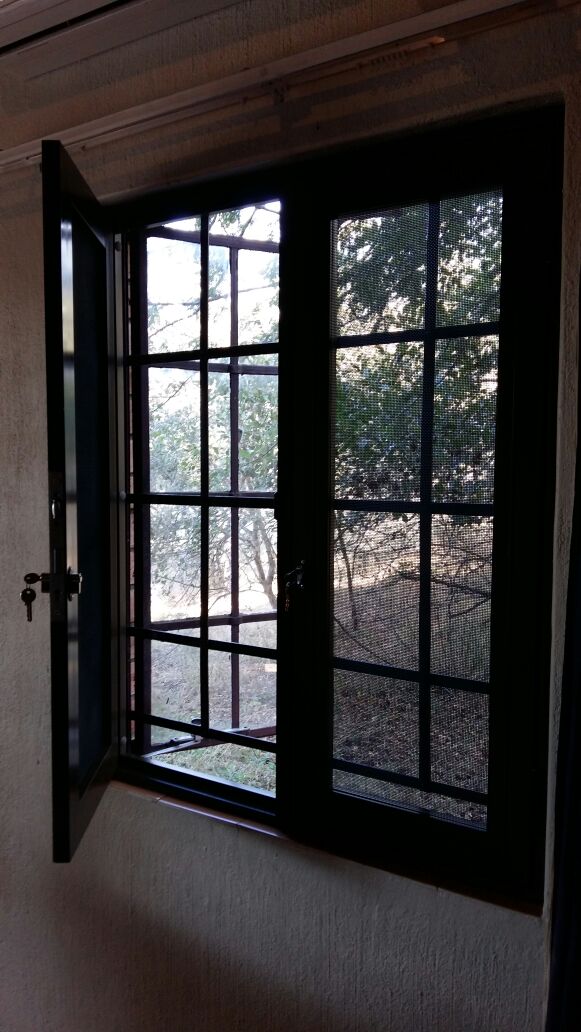

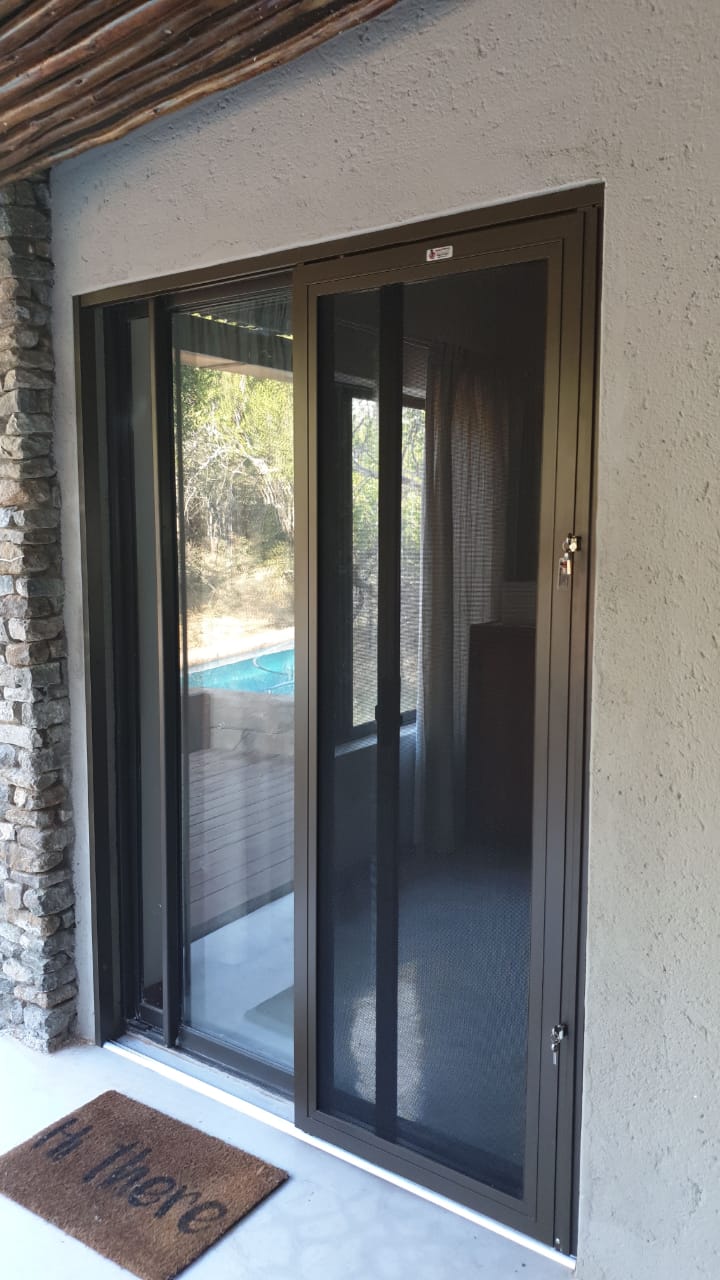

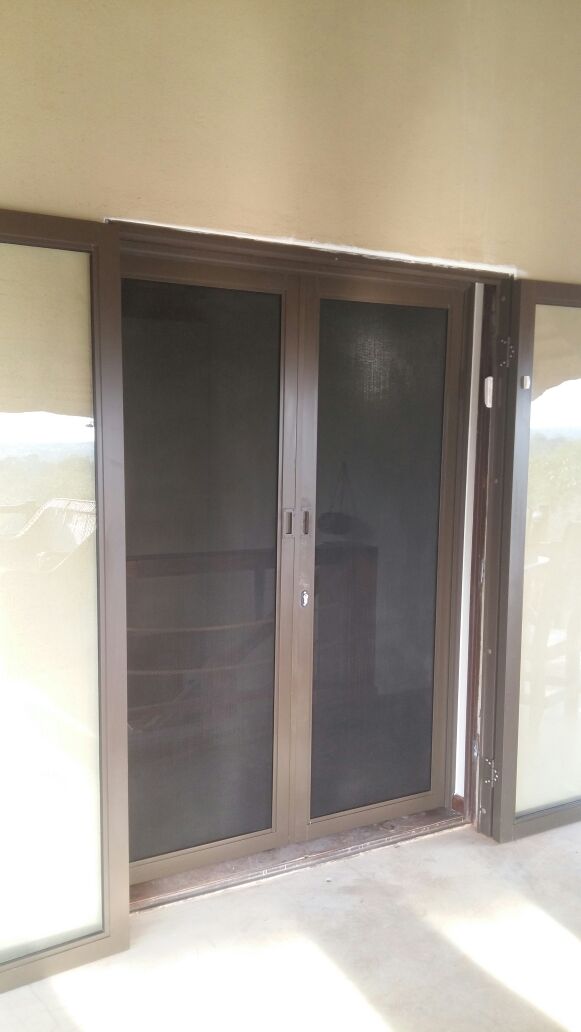

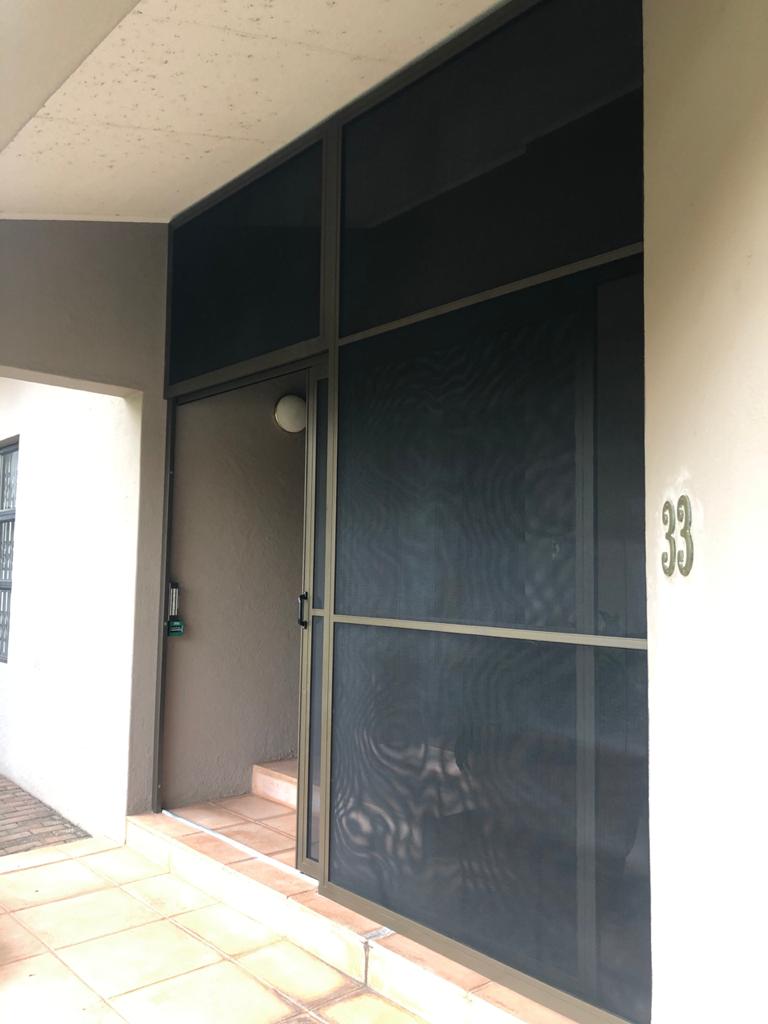

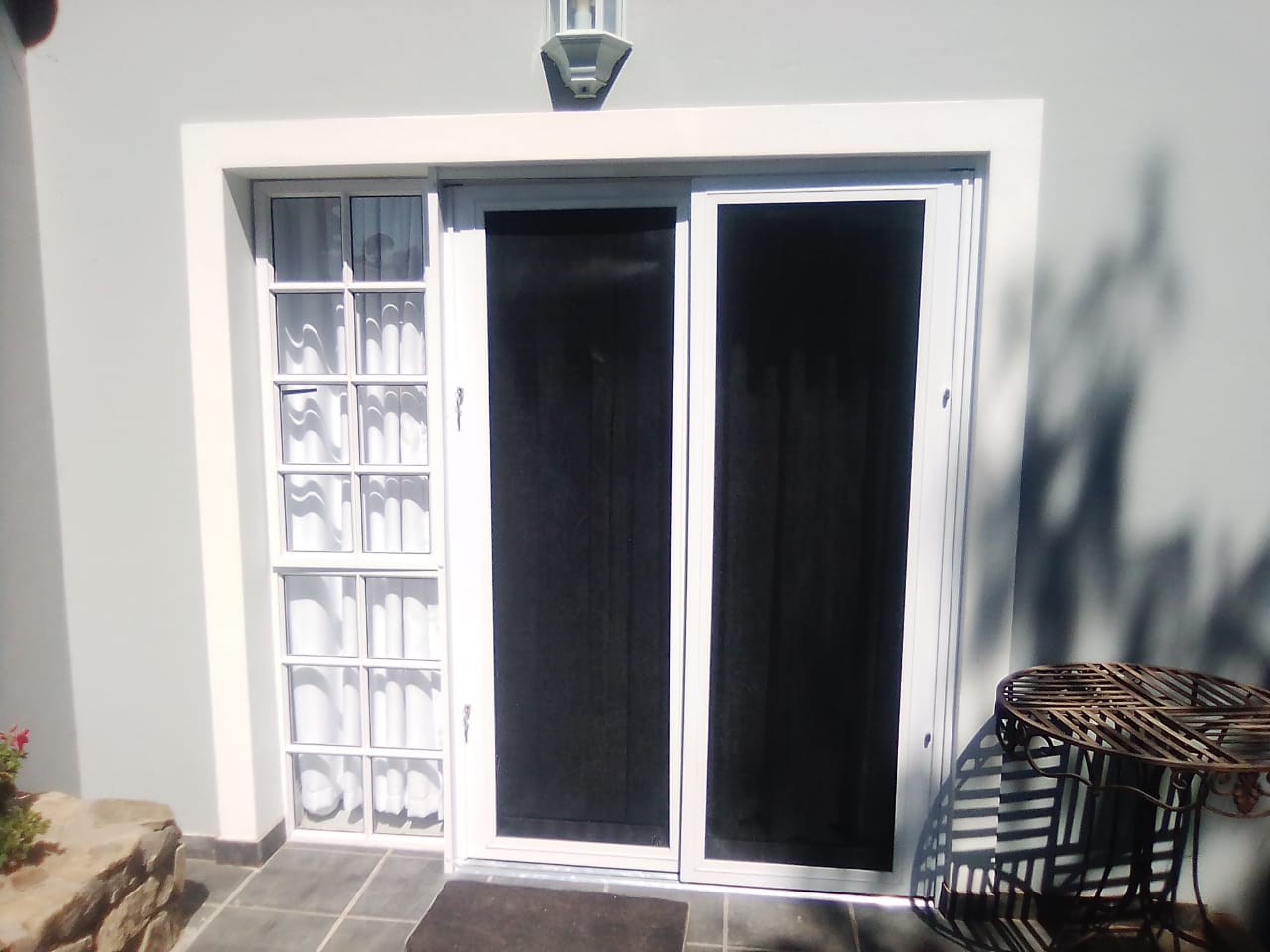

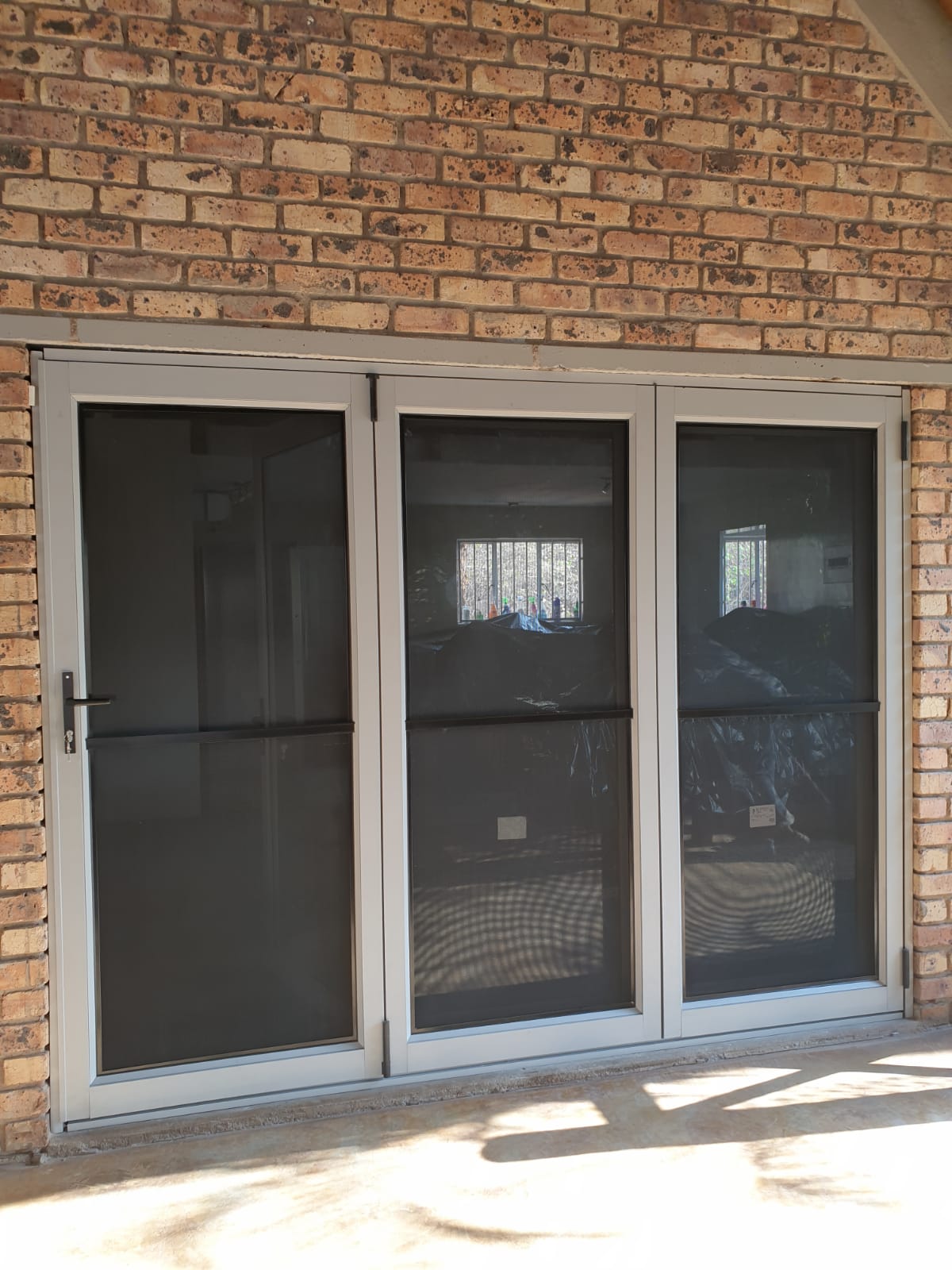

Gallery
