A mesh security screen door represents a smart investment for homeowners and business owners who want to enjoy fresh air and natural light without compromising safety. Unlike traditional insect screens, security mesh doors incorporate high-strength materials-typically stainless steel or reinforced aluminium-woven into fine mesh panels that resist cutting, prying, and impact. These doors provide a physical barrier against forced entry while maintaining visibility and ventilation, making them especially valuable in climates where open windows and doors are desirable year-round. For South African property owners, where security remains a top priority, the mesh security screen door offers a practical solution that balances protection with comfort and aesthetic appeal.

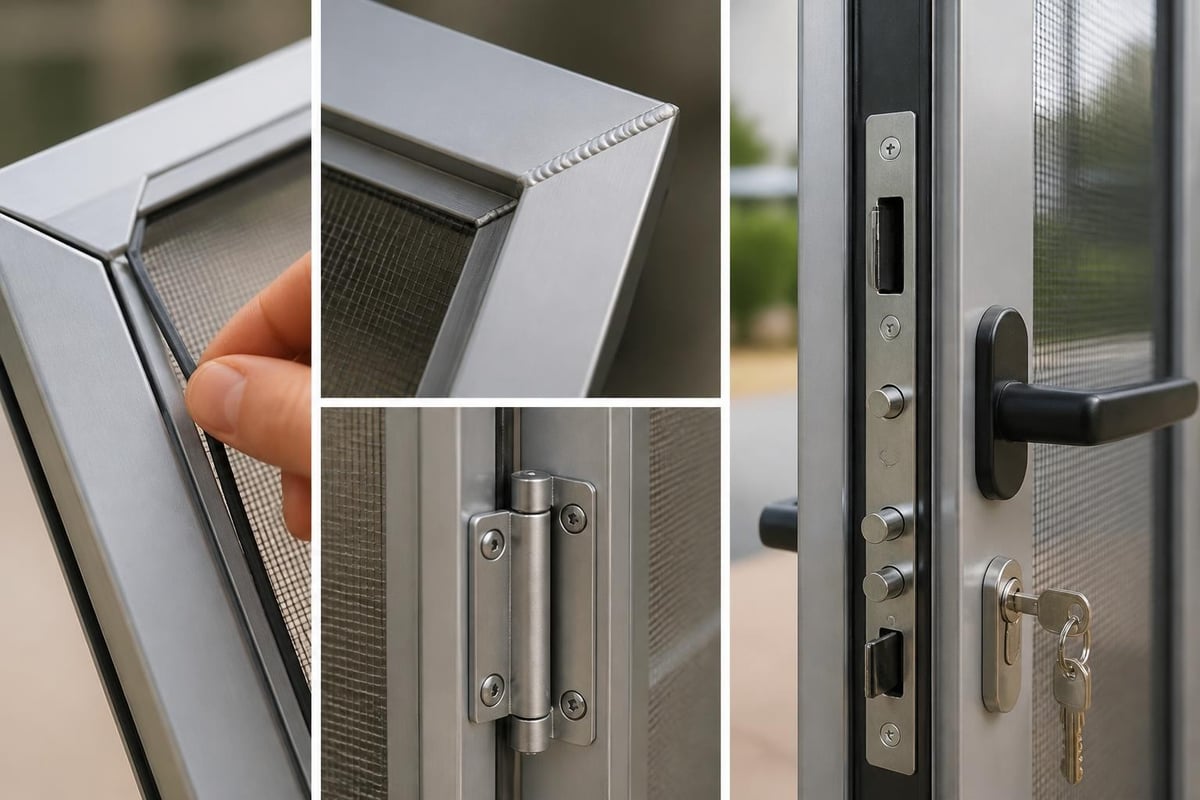

The core of any mesh security screen door lies in its mesh fabric and frame system. Most modern security screens use 316-grade marine stainless steel mesh, which delivers exceptional tensile strength and corrosion resistance. This mesh is woven at extremely tight tolerances-often seven or ten strands per inch-creating a barrier that stops both intruders and insects while preserving airflow. The weave density directly impacts security performance: tighter weaves resist knife attacks and prying tools more effectively, but they may slightly reduce airflow and visibility.
Frame construction matters just as much as the mesh itself. Heavy-duty aluminium extrusions form the perimeter, typically 40mm to 50mm wide, with reinforced corner joints and continuous welding or mechanical interlocking. The frame must anchor securely to the door jamb using tamper-resistant fasteners installed through multiple points. Quality manufacturers specify minimum gauge thickness for both mesh wire (commonly 0.8mm to 1.0mm diameter) and frame walls (1.6mm to 2.0mm) to meet forced-entry resistance standards.
Securing the mesh into the frame requires specialized techniques. The best systems use a spline-and-channel method, where the mesh edges are pressed into a groove running around the frame's interior perimeter, then locked in place with a rigid PVC or aluminium spline. This eliminates exposed edges that could be pulled or cut. Some premium designs add a secondary retention clip or use continuous adhesive bonding to prevent mesh pull-out under load.
Hardware selection plays a critical role in overall security. Hinges should be concealed or feature non-removable pins, and the locking mechanism must resist drilling, picking, and leverage attacks. Multi-point locks that engage the frame at three or more locations provide superior resistance compared to single-latch systems. Many installers also recommend a deadbolt integrated into the mesh security screen door for added protection, especially on external entry points.
When evaluating a mesh security screen door, understanding relevant performance standards helps you compare products objectively. In Australia, the AS 5039 and AS 5040 standards define knife-shear resistance, jemmy resistance, and impact resistance for security screens and doors. Although South Africa does not have an identical national standard, many reputable suppliers manufacture to Australian or international benchmarks because these tests simulate real-world attack methods.
Key performance metrics include:
Products that meet higher grades in these tests offer measurably better protection. For example, a door rated for "moderate security" might withstand 50-100 Newtons of knife force, while a "high security" rating requires resistance exceeding 200 Newtons. The Security Journal has published research linking improved physical barriers-including reinforced doors and screens-to measurable reductions in burglary rates, underscoring the value of choosing products with credible test certifications.
| Test Type | Low Security | Moderate Security | High Security |
|---|---|---|---|
| Knife Shear | <50 N | 50-150 N | >200 N |
| Impact Resistance | 50 J | 100 J | 150+ J |
| Jemmy Resistance | Marginal | Good anchorage | Reinforced frame & multi-point lock |
| Warranty Period | 1-3 years | 5-10 years | 15-25 years |
Installing a mesh security screen door must comply with local building codes and accessibility requirements. The Access Board’s ADA Guide outlines federal requirements for door clearances, threshold heights, and hardware operation. For example, accessible entrances require a maximum threshold height of 13mm (½ inch), and door hardware must be operable with one hand without tight grasping or twisting. While South African building regulations differ in detail, similar principles apply: security doors should not create trip hazards or impede emergency egress.
Fire safety codes also govern door operation. Security screens on primary exit routes must allow quick, intuitive opening from the inside without keys or special knowledge. Panic hardware or single-action lever handles satisfy this requirement while maintaining external security. Always consult a qualified installer familiar with local fire and building codes to ensure your mesh security screen door installation remains compliant.

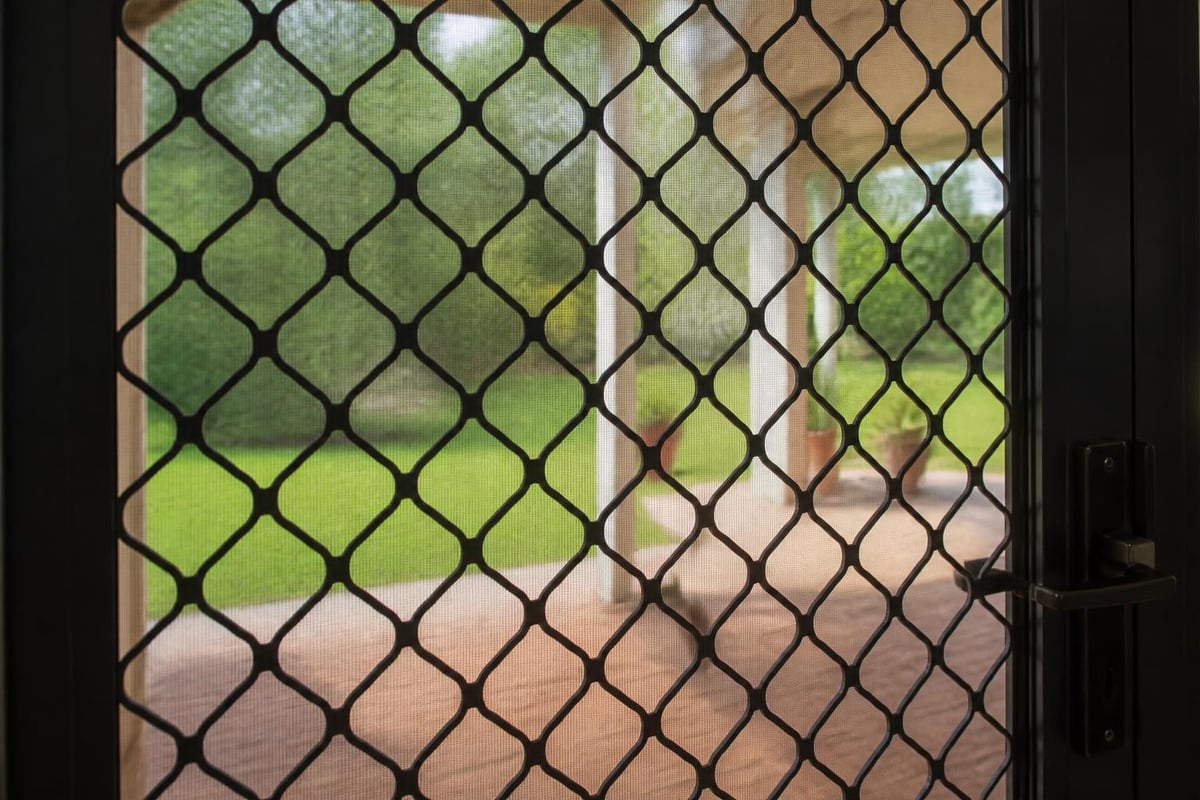

One of the primary benefits of a mesh security screen door is its ability to promote natural ventilation while keeping the main door open. Fine stainless steel mesh permits substantial airflow-typically 50% to 70% open area depending on weave density-allowing cross-breezes to cool interiors without mechanical ventilation. This passive cooling reduces energy consumption and improves indoor air quality, particularly valuable in South Africa's warm climate regions.
However, mesh does introduce resistance to airflow compared to a fully open doorway. Building Science Corporation research explains how screens and mesh affect ventilation and moisture management in residential buildings. Tighter security weaves create slightly more resistance than standard insect screens, so proper placement and sizing of ventilation openings across the home become important. Pairing a mesh security screen door with well-placed operable windows ensures effective cross-ventilation and helps manage indoor humidity.
Visibility through security mesh depends on wire diameter, weave spacing, and viewing distance. From a normal standing distance (1-2 meters), high-quality stainless steel mesh appears nearly transparent, preserving outdoor views and allowing natural light to flood interior spaces. Closer inspection reveals the weave pattern, but the visual obstruction remains minimal compared to bars or solid panels.
Some manufacturers offer clear-view or ultra-clear mesh with slightly larger openings and thinner wire to maximize transparency. These variants still provide excellent insect protection and moderate security but may sacrifice some forced-entry resistance. Conversely, maximum-security mesh uses thicker wire and tighter spacing, resulting in a slightly more visible grid pattern. Choosing the right balance depends on your priorities: Do you value unobstructed views, or is maximum physical security the top concern?

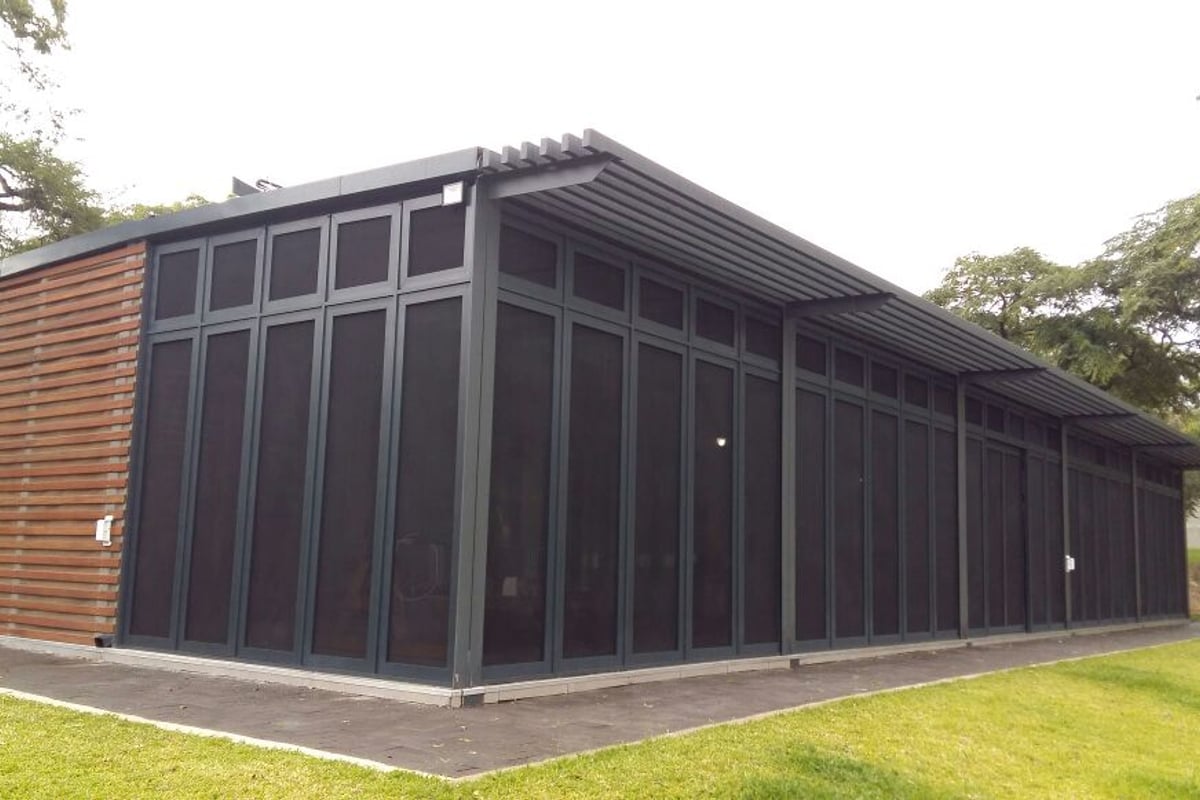

Limax Security Specialists offers the Clear Shield Security Screens, which combine high-strength stainless-steel mesh with sleek aluminium framing to deliver robust protection without compromising your view or airflow. These lightweight, corrosion-resistant screens are available in sliding or hinged configurations, ensuring you can enjoy fresh breezes and natural light while keeping intruders and pests outside.
Proper installation directly impacts the performance and longevity of your mesh security screen door. Site preparation begins with measuring the door opening accurately, accounting for jamb depth, threshold height, and any obstructions such as trim or weather-stripping. The frame must sit plumb and level; even minor misalignment can prevent the door from latching securely or cause binding during operation.
Follow these steps for a professional installation:
The Building America Solution Center provides guidance on reducing pest intrusion through proper detailing of openings, emphasizing tight seals and well-fitted screens. Even small gaps around a mesh security screen door can allow insects and rodents to enter, so attention to threshold sweeps, jamb seals, and corner joints is essential.
High-security locks require precise installation to function correctly. The strike plate must align perfectly with the latch or deadbolt, and the door should close with minimal force. Over-tightening hinge screws can distort the frame and cause misalignment, so follow manufacturer torque specifications. Concealed hinges offer the best security because they prevent hinge-pin removal from outside, but they demand precise routing and mortising during installation.
Many modern mesh security screen doors incorporate three-point locking systems that engage the top, middle, and bottom of the door frame simultaneously. These systems distribute force across multiple anchors, making it extremely difficult to force the door open with prying tools. Installation involves careful alignment of all three locking points, so professional fitting is recommended unless you have advanced carpentry and hardware skills.
A well-maintained mesh security screen door can last 15 to 25 years or more, especially when constructed from marine-grade stainless steel and powder-coated aluminium. Regular maintenance involves simple tasks that preserve both appearance and function:
Stainless steel mesh is highly resistant to rust, but in coastal or industrial environments with high salt or chemical exposure, occasional corrosion spots may appear. Address these immediately by cleaning with a stainless-steel cleaner and applying a protective coating if necessary. Aluminium frames with quality powder-coat finishes rarely require repainting, but scratches or chips should be touched up to prevent oxidation.
Even premium mesh security screen doors occasionally develop operational problems. Difficulty latching usually indicates frame misalignment or hinge wear; check that the door remains plumb and adjust hinges or strike plates as needed. Mesh sagging or rippling suggests inadequate tension or spline pull-out; this typically requires professional re-screening to restore proper tautness.
Squeaking or binding during operation points to dry hinges or a warped frame. Apply lubricant first; if the problem persists, inspect the frame for twisting or thermal expansion issues. Aluminium expands and contracts with temperature changes, so some seasonal adjustment may be necessary in climates with wide temperature swings. The Steel Door Institute provides technical resources on door assembly performance that apply broadly to heavy security doors, including thermal movement considerations.

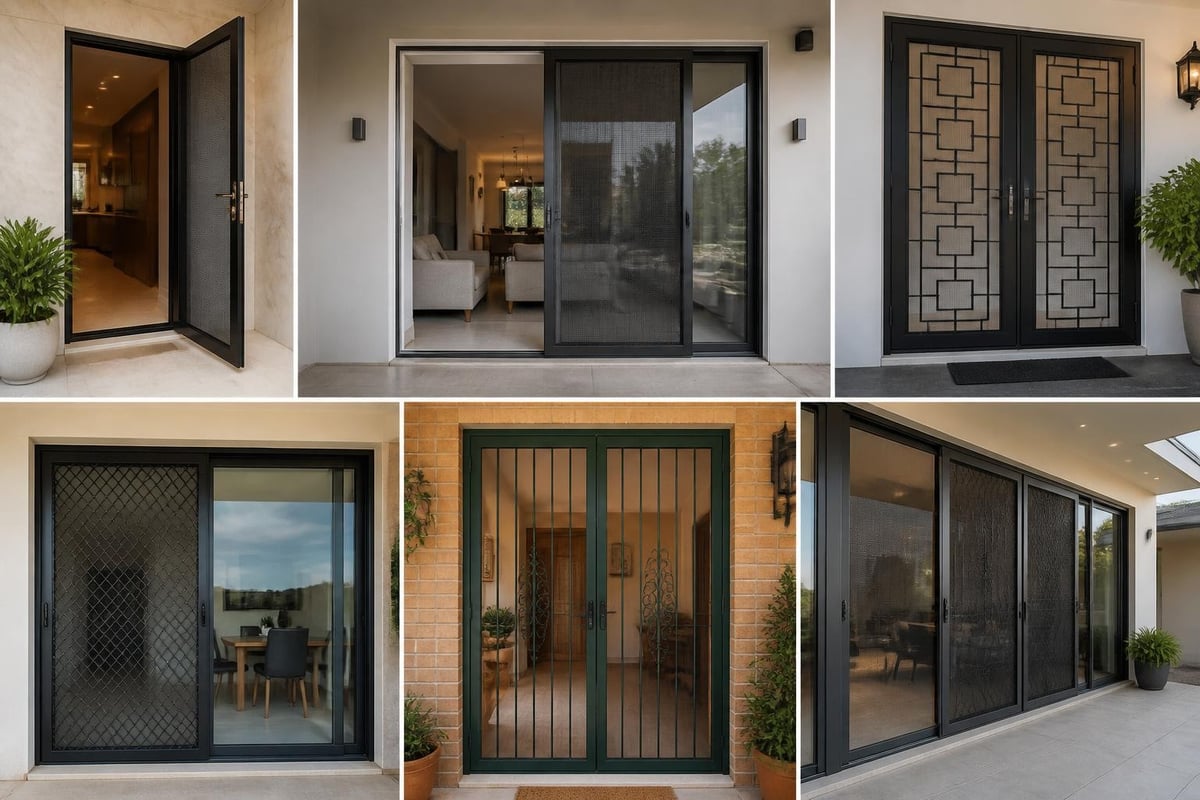

Modern mesh security screen doors are available in a wide range of finishes, colors, and styles that complement contemporary and traditional architecture alike. Powder-coated aluminium frames come in dozens of colors-from classic black and white to bronze, charcoal, and custom-matched hues-allowing seamless integration with existing window frames, fascias, and trim.
Design options include:
Some manufacturers offer custom laser-cut patterns in the frame or optional decorative inserts, transforming a functional security product into an architectural feature. These enhancements allow property owners to maintain curb appeal while upgrading security-an important consideration for heritage properties or design-conscious homeowners.
Choosing the right finish involves more than aesthetics. Darker colors (black, bronze, charcoal) tend to make the mesh visually recede, enhancing outward visibility and giving the door a more transparent appearance. Lighter colors (white, beige, silver) can make the mesh slightly more visible but may better match surrounding trim and architectural details.
Powder-coat finishes vary in durability. Look for AAMA 2604 or AAMA 2605 certified coatings, which provide superior UV resistance, color retention, and corrosion protection. These finishes withstand harsh sunlight and coastal salt spray without fading or chalking, maintaining a fresh appearance for many years. The Glass Association’s security glazing guidance discusses how frame finishes and materials integrate with entry systems, offering useful context for coordinating security screens with glazed doors and sidelights.
Pricing for a mesh security screen door varies based on size, materials, features, and installation complexity. Entry-level products using aluminium mesh and basic frames start around ZAR 2,500 to ZAR 4,000 for standard single-door sizes. Mid-range stainless steel mesh doors with multi-point locks and powder-coated frames typically cost ZAR 5,000 to ZAR 8,000. Premium systems with marine-grade mesh, concealed hinges, and custom finishes can exceed ZAR 10,000 per door, especially for oversized or sliding configurations.
While upfront costs may seem significant, the return on investment extends beyond simple burglary prevention. A mesh security screen door reduces reliance on air conditioning by enabling natural ventilation, lowering energy bills over time. It also eliminates the need for separate insect screens, reducing maintenance and replacement expenses. Many homeowners report increased property value and improved insurance premiums after upgrading to certified security doors.
| Price Range (ZAR) | Mesh Type | Frame Type | Lock System | Typical Warranty |
|---|---|---|---|---|
| 2,500 – 4,000 | Aluminium | Standard aluminium | Single latch | 3-5 years |
| 5,000 – 8,000 | Stainless steel (304) | Reinforced aluminium | Multi-point | 10-15 years |
| 8,000 – 12,000+ | Marine-grade stainless (316) | Heavy-duty extrusions | Concealed multi-point + deadbolt | 20-25 years |
Experienced DIYers with the right tools can install a mesh security screen door, but professional installation offers important advantages. Certified installers carry liability insurance, provide workmanship warranties, and have specialized equipment for precise alignment and secure anchoring. They also understand local building codes and can navigate permitting requirements, ensuring your installation remains compliant.
DIY installation may save ZAR 800 to ZAR 1,500 in labor costs, but mistakes can compromise security and void product warranties. Misaligned doors wear out hardware prematurely, and improper fastening can allow the entire assembly to be removed. For high-security applications or complex installations (wide openings, steel jambs, multi-panel systems), professional installation is strongly recommended.
Choosing the best mesh security screen door requires balancing security, ventilation, visibility, and budget. Start by assessing your threat level and priorities: Do you live in a high-crime area where forced-entry resistance is paramount? Or is your main concern keeping insects out while enjoying breezes? Different scenarios call for different product specifications.
Consider these factors during selection:
The International Accreditation Service resources compile relevant test methods and performance standards for screens, windows, and forced-entry resistance, helping you compare products based on objective criteria. Look for specific test results and certifications rather than relying on marketing claims alone.
A mesh security screen door works best as part of a layered security strategy. Combining it with other physical barriers-such as burglar bars on windows, perimeter fencing, and motion-activated lighting-creates multiple obstacles that deter opportunistic intruders. The government publication on building accessibility addresses door usability and safety considerations, reminding us that security upgrades must still allow rapid egress during emergencies.
Electronic security systems-alarms, cameras, and access control-complement physical barriers by detecting and recording intrusion attempts. However, a high-quality mesh security screen door provides the critical first line of defense, buying time and often discouraging intruders before they attempt entry. This layered approach delivers the most robust protection for residential and commercial properties alike.
Recent innovations have expanded the capabilities of mesh security screen doors beyond basic forced-entry resistance. Integrated insect control remains a core benefit, but modern designs also address UV filtration, privacy, and smart-home integration. Some premium systems incorporate solar-reflective coatings on the mesh to reduce heat gain while maintaining visibility, enhancing energy efficiency in sun-exposed entries.
Magnetic closure systems offer convenience for high-traffic areas, allowing hands-free entry while ensuring the door closes securely behind you. These systems use powerful magnets embedded in the frame and door edge, providing a satisfying click and positive seal every time. Consumer Reports has reviewed magnetic screen doors, noting their ease of use and suitability for families with children and pets, though security-rated magnetic systems remain less common than traditional latch mechanisms.
Some manufacturers now offer mesh security screen doors compatible with smart lock systems, enabling keyless entry via smartphone apps, biometric readers, or keypad codes. These systems log entry events, send alerts when the door is opened, and allow remote locking or unlocking-ideal for rental properties, multi-tenant buildings, or homeowners who want centralized control of all entry points.
When integrating smart locks, ensure the mesh security screen door frame can accommodate the additional hardware and wiring. Battery-powered smart locks simplify installation but require regular battery replacement, while hardwired systems demand access to electrical conduits. Compatibility with home automation platforms (Google Home, Amazon Alexa, Apple HomeKit) enhances convenience and allows voice control or automated routines.
A mesh security screen door delivers a powerful combination of forced-entry protection, ventilation, visibility, and insect control-making it an essential upgrade for any South African property where security and comfort matter. By selecting high-quality materials, ensuring professional installation, and integrating the door into a broader security strategy, you create a safer, more livable environment for your family or business. Ready to enhance your property's security without sacrificing airflow or views? Limax Security Specialists offers expert consultation and installation of premium security screens, gates, and barriers tailored to your unique needs.
